UL3352

UL3352 single-conductor wire with XLPE insulation, UL-certified and rated 125°C/600V. Provides heat resistance, voltage stability, and flame performance for internal wiring.

XLPE-UL3352 Specification.pdf

UL3352 XLPE Insulated Wire – 125°C / 600V Hook-Up Wire for Internal Wiring Applications

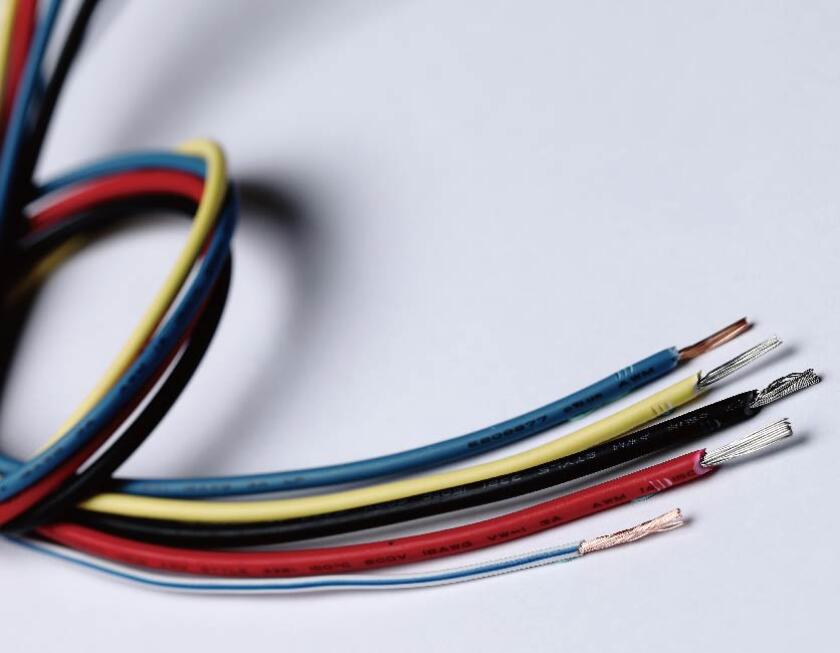

UL3352 is a UL-certified single-conductor wire insulated with cross-linked polyethylene (XLPE). Rated for 125°C and 600V, this wire is designed for internal wiring in electronic and electrical equipment where heat resistance, voltage stability, and flame performance are critical.

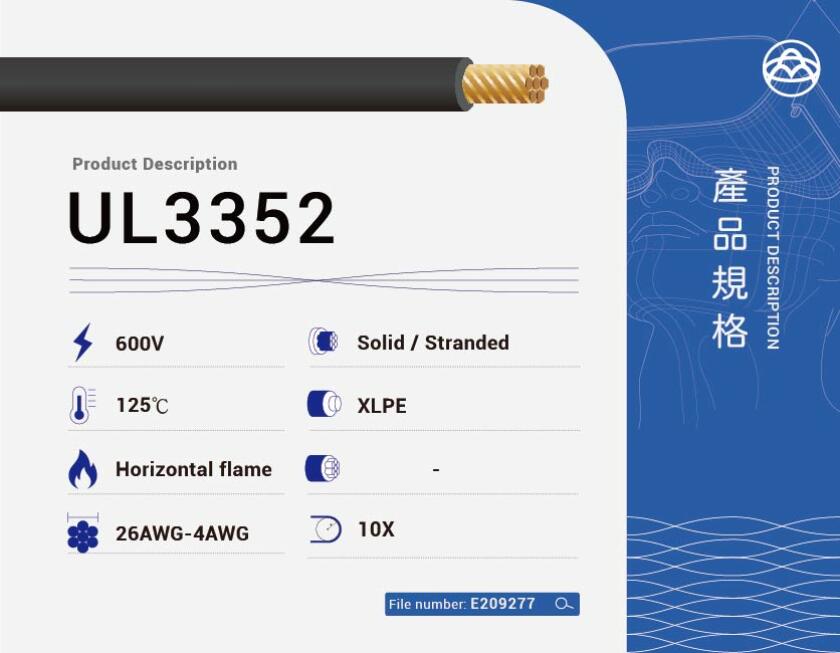

Key Features

  • Conductor: Solid or stranded bare or tinned copper, available in sizes from 26 AWG to 4 AWG

  • Insulation: Extruded XLPE with a minimum average thickness of 30 mils (0.76 mm) for 26–9 AWG and 45 mils (1.14 mm) for 8–4 AWG

  • Temperature Rating: Up to 125°C

  • Voltage Rating: 600V

  • Flame Resistance: Passes horizontal flame test requirements

  • Standards: Complies with UL 758 Appliance Wiring Material (AWM) Style 3352

  • Usage: Designed for internal wiring in electronic and electrical equipment


Common Applications

  • Internal wiring in electronic devices and instrumentation

  • Applications requiring high heat resistance and high-voltage performance

  • Internal connections in industrial control panels and machinery
