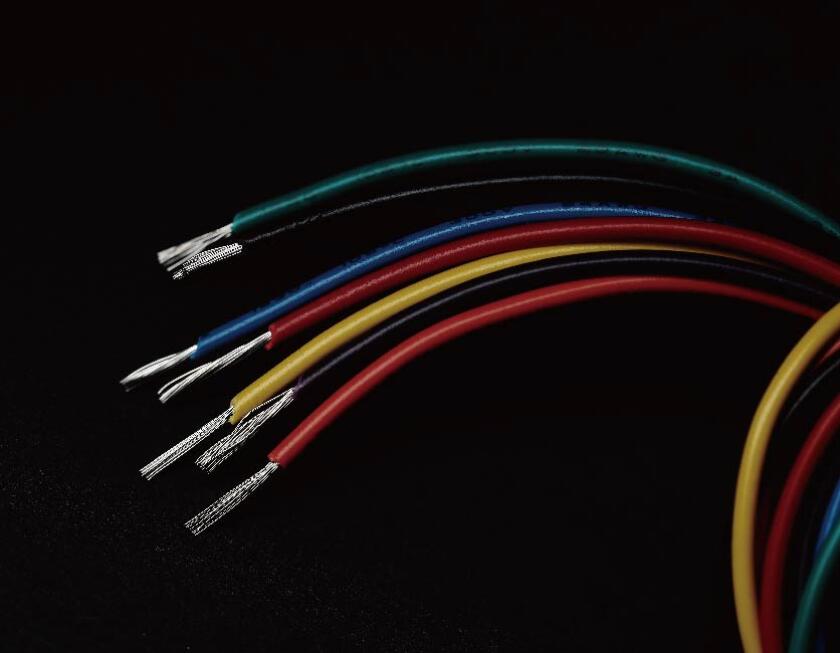

UL30034 High-Voltage Wire
UL30034 high-voltage wire with stranded copper and XLPE insulation, UL-certified and rated 30kV DC/105°C. Provides flexibility, flame resistance, and reliable insulation.
UL30034 – 30kV DC XLPE-Insulated High-Voltage Wire for Industrial and Power Applications
UL30034 is a UL-certified high-voltage wire designed for applications requiring high insulation integrity and reliable voltage stability. Rated for 30kV DC and 105°C, this wire features stranded copper conductors, cross-linked polyethylene (XLPE) insulation, and complies with the Cable Flame Test under UL 758 AWM standards. It is suitable for applications requiring flexibility and flame resistance.
Features
Conductor: Stranded bare or tinned copper (24 AWG to 10 AWG)
Insulation: XLPE (Cross-Linked Polyethylene)
Jacket: Optional XLPVC (Cross-Linked Polyvinyl Chloride)
Temperature Rating: 105°C
Voltage Rating: 30kV DC
Flame Resistance: Passes UL VW-1, FT2 tests
Standard: UL 758 AWM Style 30034
Compliance: RoHS, REACH
Application: High-voltage internal wiring of electronic equipment
Applications
High-voltage power transfer in industrial equipment
Wiring in electric vehicles (EVs) and battery energy storage systems (ESS)
Internal routing for industrial control cabinets and server-grade UPS
Power connections for renewable energy and grid-level ESS
Environments exposed to oil, heat, vibration, or electrical noise
