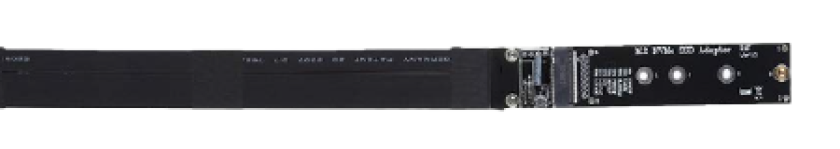

NVMe SSD Extension
3A PLUS 1.25 mm ultra-thin flat cable assemblies extend NVMe U.3 and M.3 interfaces, PCIe Gen3/Gen4 compatible up to 16Gbps. Flexible 180° bend, ideal for servers, AI, and data centers.
NVMe SSD Extension Cable | Gen.3 / Gen.4 M.3 & U.3 Flat Cable Solutions
3A PLUS offers ultra-thin 1.25mm flat cable assemblies designed for extending high-speed NVMe SSD interfaces such as U.3 (SFF-8639) and M.3 (NGSFF/NF1). These Gen.3 and Gen.4 PCIe-compatible solutions support up to 16Gbps, flexible 180° bending, and seamless integration with data center, AI computing, or high-density server environments—without requiring EQ chips.
Key Specifications
Transmission Rate: PCIe Gen.3 (8Gbps), Gen.4 (16Gbps)
Connector Support: U.3 (SFF-8639), M.3 (NGSFF/NF1)
Cable Thickness: 1.25 mm ultra-thin flat design
Bendability: 180°, impedance-stable structure
Max Length: Up to 1 meter (custom lengths available)
Power Support: 3.3V / 12V
Chip Requirement: No repeater / EQ chip required
Origin & Patent: Made in Taiwan, globally patented
Applications
Gen.3 / Gen.4 NVMe SSD extension for U.3 or M.3 modules
Cable routing for data centers, edge servers, or AI systems
Storage card-to-motherboard interconnection
M.3 22110 or 2280 side-insert or vertical installations
SATA / SAS / PCIe protocol compatibility
