UL2725 PVC Shielded Cable
UL2725 multi-conductor cable, 30V and 80°C rated, with PVC insulation and optional shield, provides flexible, flame-resistant wiring for electronics.
UL2725 PVC Shielded Cable – 80°C / 30V Multi-Conductor Wire for Internal Electronic Wiring

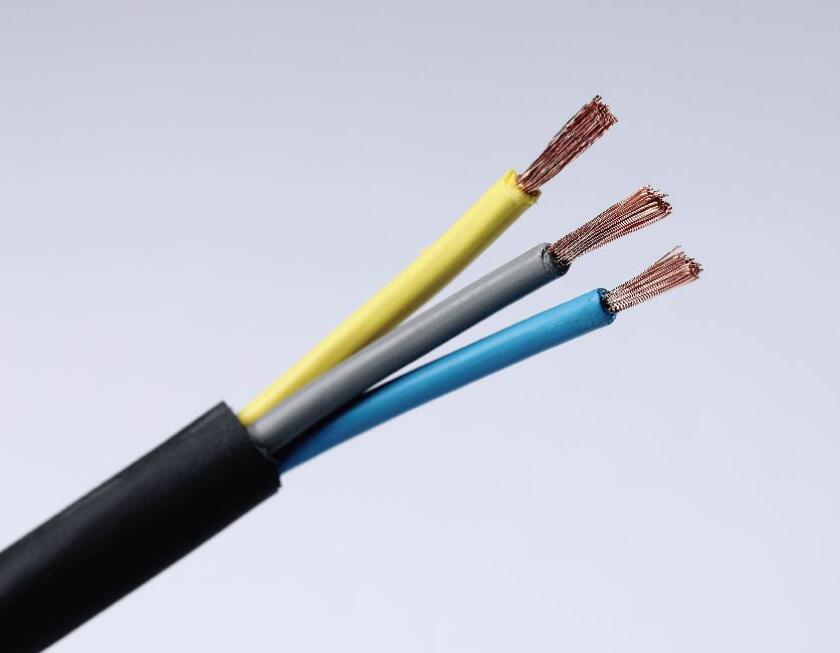

UL2725 is a UL-certified multi-conductor cable designed for the internal wiring of electronic equipment. Rated for 80°C and 30V, this cable features stranded tinned copper conductors, PVC insulation, and an optional shield and jacket. It complies with the Cable Flame Test under UL 758 AWM standards, making it suitable for low-voltage applications requiring flexibility and flame resistance.

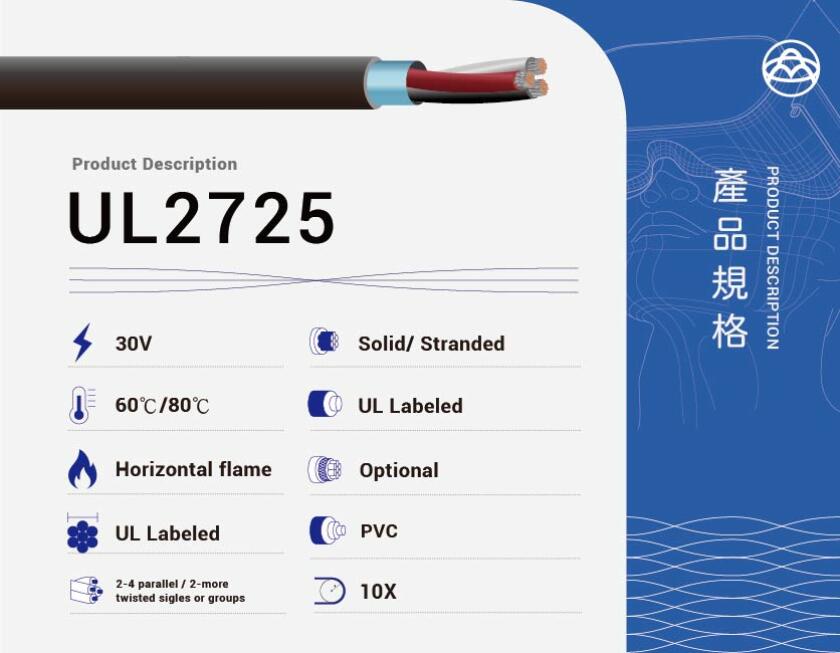

Key Features
Conductor: Stranded tinned copper
Insulation: PVC
Shield: Optional (e.g., aluminum foil, braid)
Jacket: PVC
Temperature Rating: 80°C
Voltage Rating: 30V
Flame Resistance: Passes Cable Flame Test
Standard: UL 758 AWM Style 2725
Application: Internal wiring of electronic equipment
Applications
Internal wiring in electronic devices
Signal transmission in computers and peripherals
USB and data cables
Audio and video equipment wiring
