UL3351 hook-up wire with XLPE insulation, UL-certified and rated 125°C/600V. Ensures heat resistance, voltage stability, and flame performance for internal wiring needs.

XLPE-UL3351 Specification.pdf

UL3351 XLPE Insulated Wire – 125°C / 600V Hook-Up Wire for Internal Wiring Applications

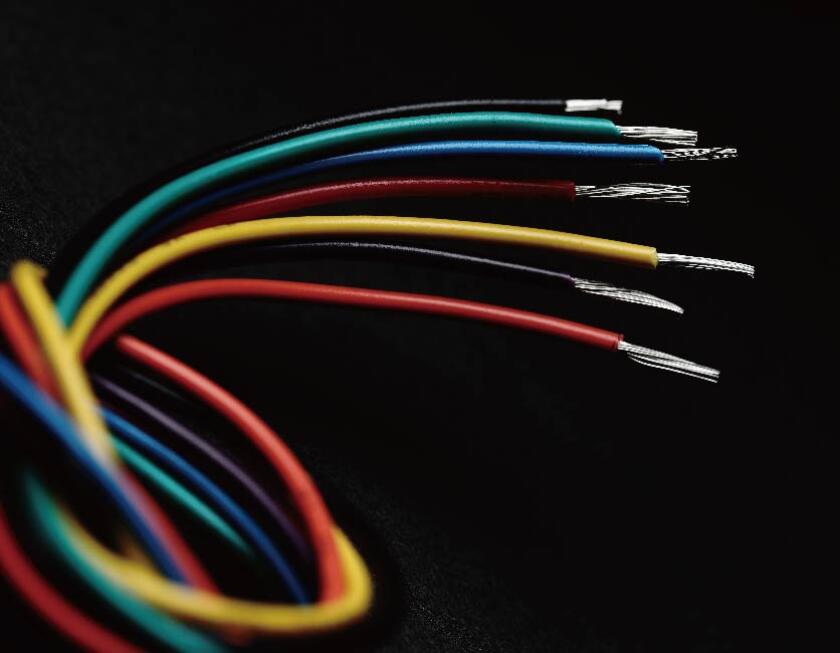

UL3351 is a UL-certified single-conductor wire insulated with cross-linked polyethylene (XLPE). Rated for 125°C and 600V, this wire is designed for internal wiring in electronic and electrical equipment where heat resistance, voltage stability, and flame performance are critical.


Key Features

  • Conductor: Solid or stranded bare or tinned copper, available in sizes from 30 AWG to 4/0 AWG

  • Insulation: Extruded XLPE with a minimum thickness of 0.82 mm for smaller gauges and up to 2.07 mm for larger gauges

  • Temperature Rating: Up to 125°C

  • Voltage Rating: 600V

  • Flame Resistance: Passes horizontal flame test requirements

  • Standards: Complies with UL 758 Appliance Wiring Material (AWM) Style 3351

  • Usage: Designed for internal wiring in electronic and electrical equipment


 Common Applications

  • Internal wiring in electronic devices and instrumentation

  • Applications requiring high heat resistance and high-voltage performance

  • Internal connections in industrial control panels and machinery
