UL3312 XLPE Insulated Wire
UL3312 single-conductor wire with XLPE insulation, UL-certified and rated 105°C/150V. Ensures heat resistance, voltage stability, and flame performance for internal wiring.
UL3312 XLPE Insulated Wire – 105°C / 150V Hook-Up Wire for Internal Wiring Applications

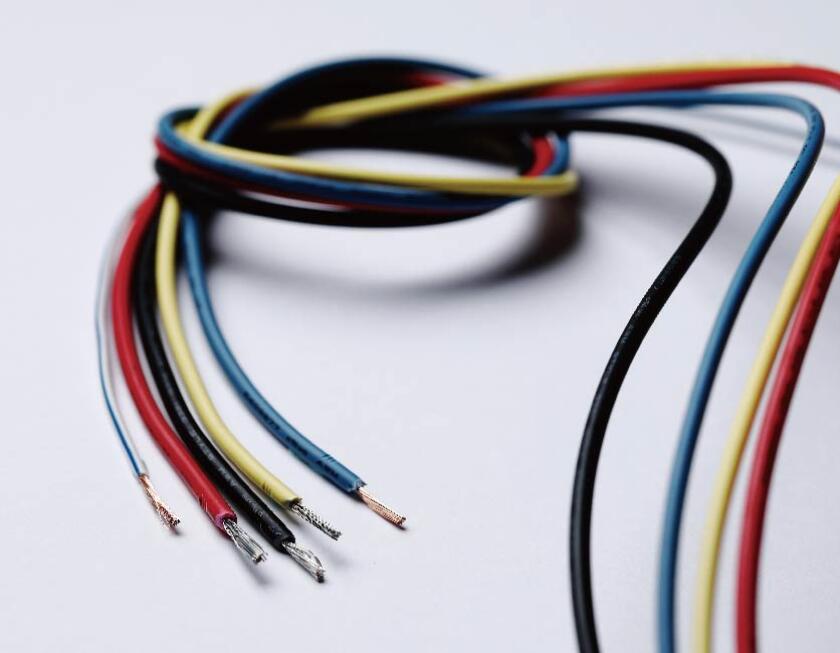

UL3312 is a UL-certified single-conductor wire insulated with cross-linked polyethylene (XLPE). Rated for 105°C and 150V, this wire is designed for internal wiring in electronic and electrical equipment where heat resistance, voltage stability, and flame performance are critical.

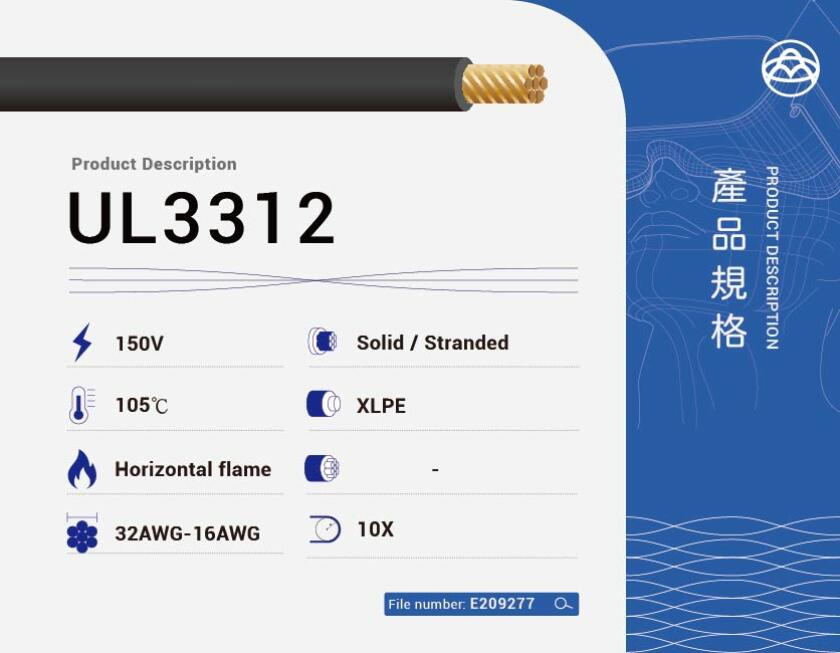

Key Features
Conductor: Solid or stranded bare or tinned copper, available in sizes from 32 AWG to 16 AWG
Insulation: Extruded XLPE with a minimum average thickness of 10 mils (0.254 mm) and a minimum thickness at any point of 9 mils (0.229 mm)
Temperature Rating: Up to 105°C
Voltage Rating: 150V
Flame Resistance: Passes horizontal flame test requirements
Standards: Complies with UL 758 Appliance Wiring Material (AWM) Style 3312
Usage: Designed for internal wiring in electronic and electrical equipment
Common Applications
Internal wiring in electronic devices and instrumentation
Applications requiring moderate heat resistance and low-voltage performance
Internal connections in compact or precision electronic systems
External Technical Reference
Need assistance selecting the right wire?
Our technical team is ready to help you choose the best UL3312 cable for your project.
