UL1007
UL1007 hook-up wire with PVC insulation, UL-recognized and rated 80°C/300V. Provides durable, flexible, and safe internal wiring for control panels, appliances, and machinery.

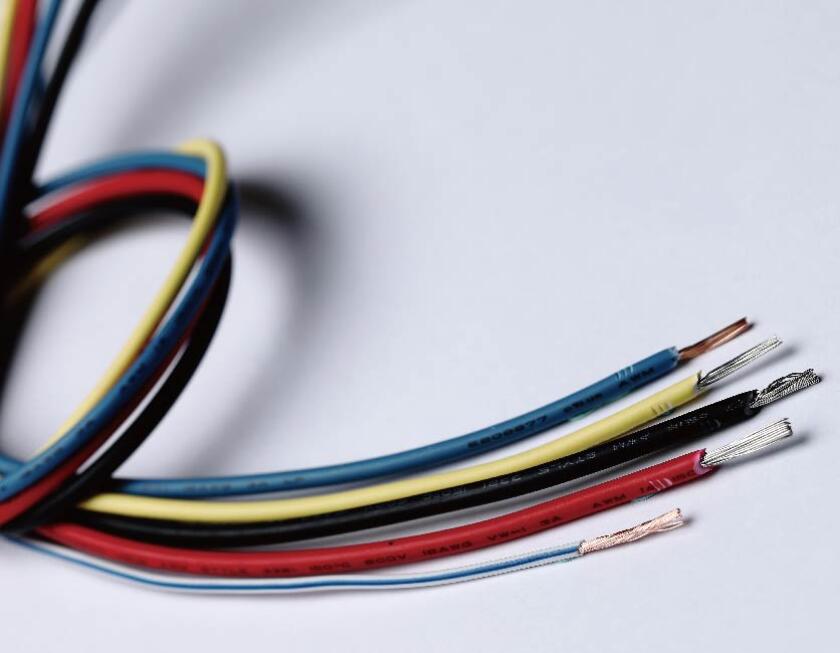

UL1007 Hook-Up Wire – 300V 80°C PVC-Insulated Wire for Internal Electronic Applications
UL1007 is a UL-recognized single-conductor hook-up wire designed for internal wiring in electronic and electrical equipment. Rated for 300V and operating temperatures up to 80°C, it features durable Polyvinyl Chloride (PVC) insulation, ensuring reliable performance across various applications.
This wire is ideal for scenarios demanding dependable low-voltage connections and durability, such as control panels, appliances, and industrial machinery. Its design offers flexibility in routing while adhering to stringent safety standards.
Key Features
Voltage Rating: 300V
Temperature Rating: 80°C
Conductor Sizes: 30 AWG to 16 AWG, solid or stranded
Conductor Material: Bare or tinned copper
Insulation: Extruded PVC
Nominal Thickness: 0.41 mm (16 mils)
Flame Resistance: Passes UL VW-1 vertical flame test
Standards Compliance: UL 758 AWM Style 1007
Environmental Compliance: RoHS & REACH Compliant
Applications
Internal wiring of electronic and electrical equipment
Control panels and industrial machinery
Appliances requiring reliable internal connections
Point-to-point wiring in meters and instrumentation
UL1007 wire is engineered to deliver consistent performance in various environments, offering flexibility, durability, and compliance with safety standards.
