UL3302
UL3302 single-conductor wire with XLPE insulation, UL-certified and rated 105°C/30V. Provides heat resistance, voltage stability, and flame performance for internal wiring.
UL3302 XLPE Insulated Wire – 105°C / 30V Hook-Up Wire for Internal Wiring Applications

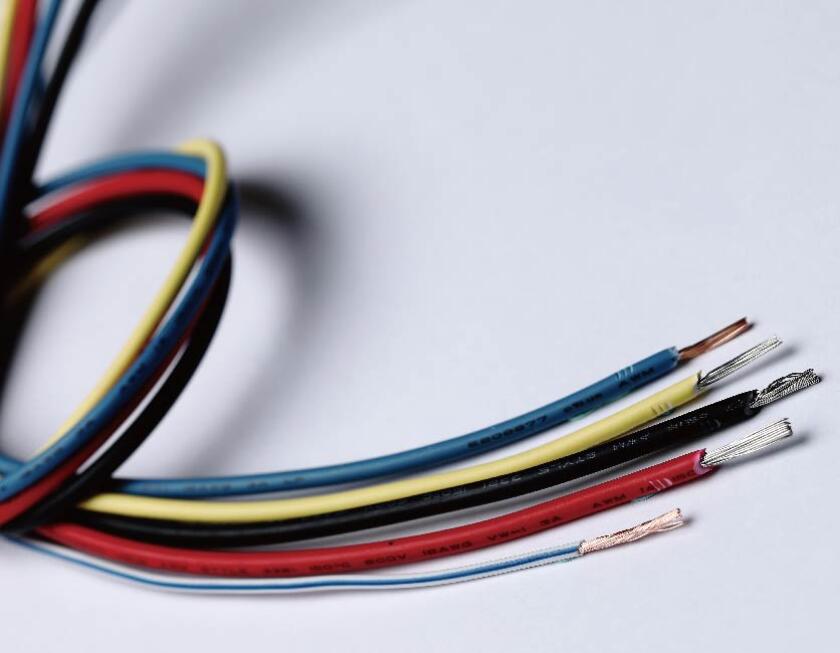

UL3302 is a UL-certified single-conductor wire insulated with cross-linked polyethylene (XLPE). Rated for 105°C and 30V, this wire is designed for internal wiring in electronic and electrical equipment where heat resistance, voltage stability, and flame perform

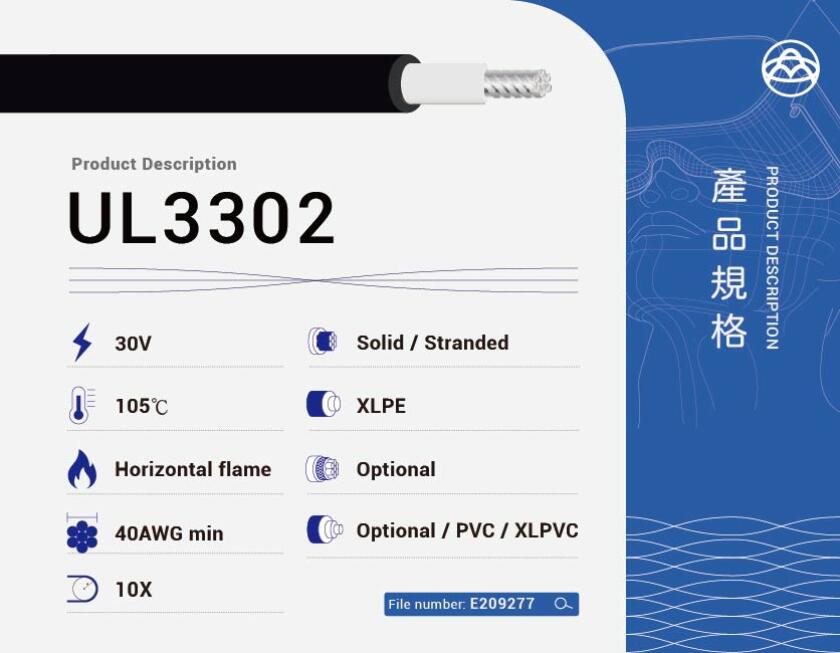

Key Features
Conductor: Solid or stranded bare or tinned copper, available in sizes from 40 AWG and larger
Insulation: Extruded XLPE or foamed XLPE with a minimum thickness of 4 mils (0.10 mm) and a maximum thickness of 100 mils (2.54 mm)
Temperature Rating: Up to 105°C
Voltage Rating: 30V
Flame Resistance: Passes UL Horizontal Flame Test
Standards: Complies with UL 758 Appliance Wiring Material (AWM) Style 3302
Usage: Designed for internal wiring of Class 2 circuits in electronic equipment
Common Applications
Internal wiring in electronic devices and instrumentation
Applications requiring moderate heat resistance and low-voltage performance
Internal connections in compact or precision electronic systems
External Technical Reference
Need assistance selecting the right wire?
Our technical team is ready to help you choose the best UL3302 cable for your project.
