High Voltage Double Shielded Wire – EMI-Protected Silicone Cable for Demanding Power Systems

High voltage double shielded wire with silicone insulation, rated -40°C to 200°C. Delivers EMI suppression, voltage stability, and durability for EVs, ESS, and industrial systems.

Double-HVS-cable Specification.pdf

High Voltage Double Shielded Wire – EMI-Protected Silicone Cable for Demanding Power Systems

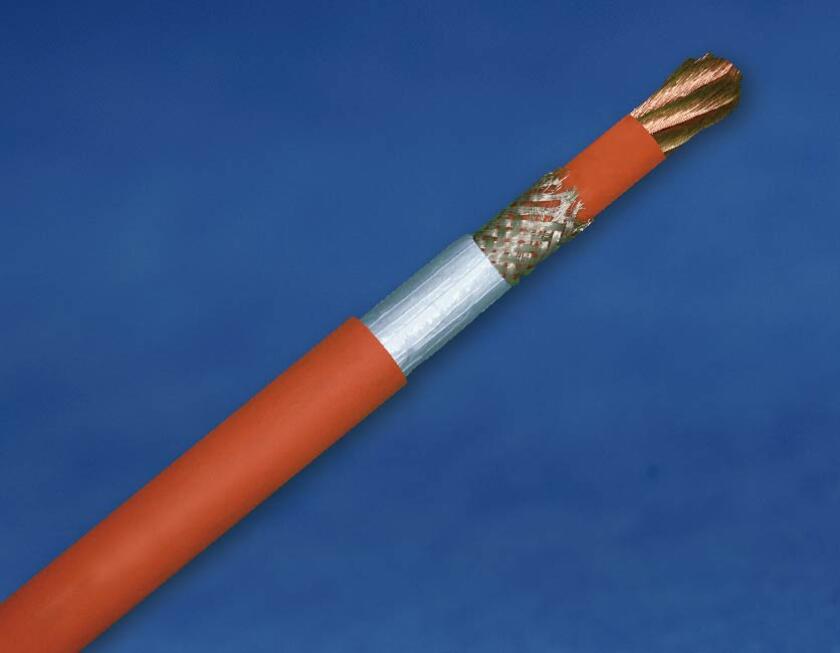

High voltage double shielded wire is designed for applications requiring high insulation integrity, electromagnetic interference (EMI) suppression, and reliable voltage stability. Engineered with a dual-shield structure—typically combining aluminum foil and tinned copper braid—this cable ensures low signal noise and high safety in power-critical systems.

Its silicone rubber insulation provides outstanding flexibility and thermal endurance, maintaining performance in environments ranging from -40°C to 200°C. These wires are well-suited for use in electric vehicles (EVs), battery energy storage systems (ESS), industrial inverters, and DC bus lines where robust shielding and environmental durability are key.

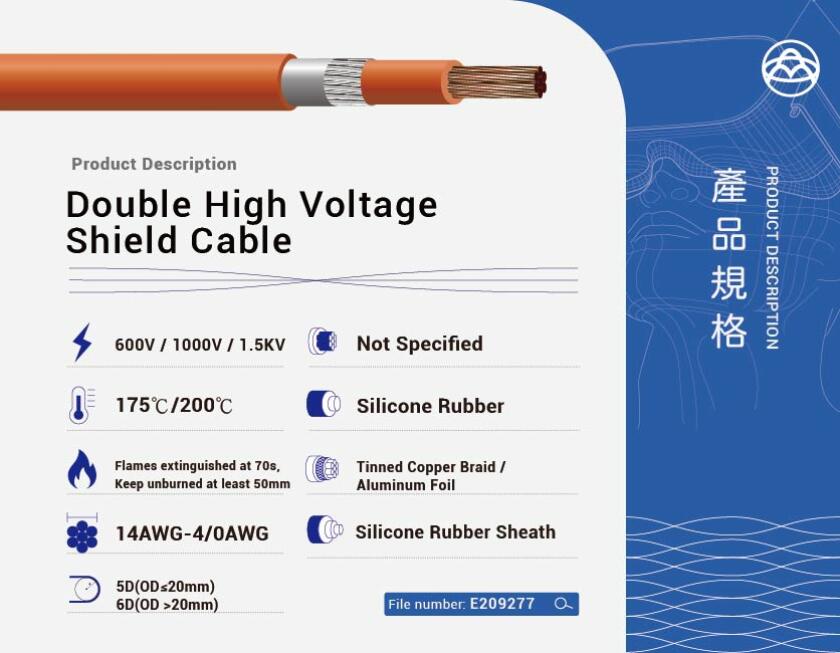

Feature

  • Voltage Rating: 600V / 1000V / 1500V

  • Temperature Range: -40°C to 175°C / 200°C

  • Insulation: High-flex silicone rubber

  • Shielding: Dual layer (aluminum foil + copper braid)

  • Conductor: Stranded bare or tinned copper

  • Flame Rating: UL VW-1, IEC 60332-1

  • Compliance: UL, IATF 16949, RoHS, CQC, ISO 9001


Application

  • High-voltage power transfer between battery modules and inverters

  • Wiring in EV platforms, e-mobility systems, and on-board chargers

  • Internal routing for industrial control cabinets and server-grade UPS

  • Power connections for renewable energy and grid-level ESS

  • Environments exposed to oil, heat, vibration, or electrical noise
