UL20330
UL20330 multi-conductor cable, 30V and 105°C rated, with TPE insulation and optional shield, offers flexible, flame-resistant wiring for electronics.

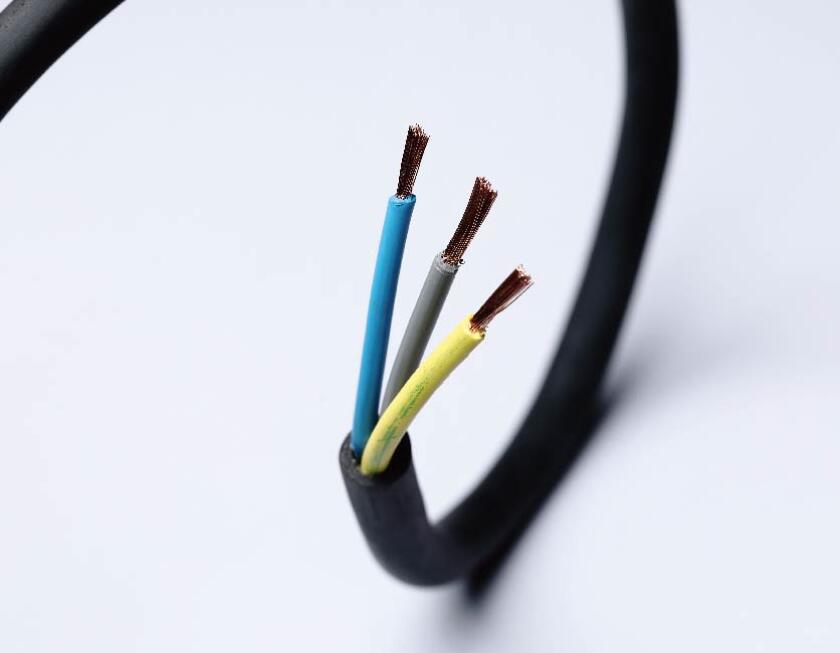

UL20330 TPE Insulated Cable – 105°C / 30V Multi-Conductor Wire for Internal Electronic Applications
UL20330 is a UL-certified multi-conductor cable designed for the internal wiring of electronic equipment. Rated for 105°C and 30V, this cable features stranded tinned copper conductors, TPE insulation, and an optional shield and jacket. It complies with the Cable Flame Test under UL 758 AWM standards, making it suitable for applications requiring flexibility and flame resistance.
Key Features
Conductor: Stranded tinned copper
Insulation: TPE
Shield: Optional (e.g., aluminum foil, braid)
Jacket: TPE
Temperature Rating: 105°C
Voltage Rating: 30V
Flame Resistance: Passes Cable Flame Test
Standard: UL 758 AWM Style 20330
Application: Internal wiring of electronic equipment
Applications
Internal wiring in electronic devices
Signal transmission in computers and peripherals
Control wiring in industrial equipment
Audio and video equipment wiring
